OWON XDS3000 Series N-In-1 Digital Oscilloscope

OWON XDS3000 Series N-In-1 Digital Oscilloscope
Увеличить изображение
OWON XDS3000 Series N-In-1 Digital Oscilloscope
OWON XDS3000 Series N-In-1 Digital Oscilloscope
OWON XDS3000 Series N-In-1 Digital Oscilloscope
OWON XDS3000 Series N-In-1 Digital Oscilloscope
Производитель: ♦ OWON Fujian Lilliput Optoelectronics Technology Co., Ltd
Наличие уточняйте

Super Performance

+ 8-bit, 12-bit or 14-bit high resolution ADC, restoring the waveform detail fully
+ 40M record length, max 70,000 wfms/s waveform refresh rate
+ low background noise, vertical sensitivity in 1 mV/div - 10 V/div
+ multi- trigger, and bus decoding function
+ SCPI, and LabVIEW supported

Creative New Look

+ ultra-thin body-design, less space accommodation
+ multi-interface integration - USB host, USB device, USB port for PictBridge, LAN, AUX, and more
+ VGA port - better solution for video expansion, and teaching demonstration
+ 8 inch 800 x 600 high resolution LCD
+ optional multi-point touch screen, more user-friendly operation experience

n-in-1

functions as data logger, and multimeter with data logging function,
and dual-channel 25MHz / 50MHz arbitrary waveform generator,
furthermore, battery pack, and WiFi module supported


We are known as one of world's leading China manufacturers and suppliers. Welcome to buy the famous brands' OWON xds series n-in-1 digital oscilloscope, usb scope, multimeter oscilloscope, high resolution oscilloscopes, wifi oscilloscope, oscilloscope app with cheap price from us. We have many products in stock at your choice. Consult the quotation with us now.

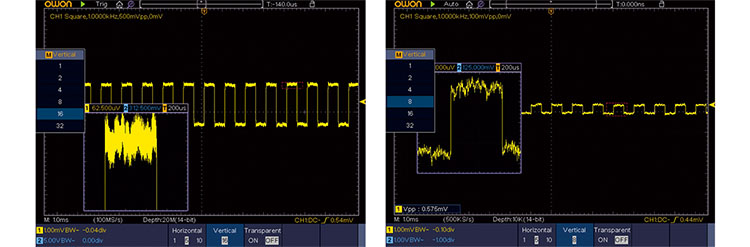

 1. 12 / 14-bits ADC and original magnifier function

XDS series introduce 12 / 14 bits hardware ADC, the precision is 16/64 times against other oscilloscope on market. Equipping with OWON’s original magnifier function, it can observe the signal low down to 31.25μV/div.

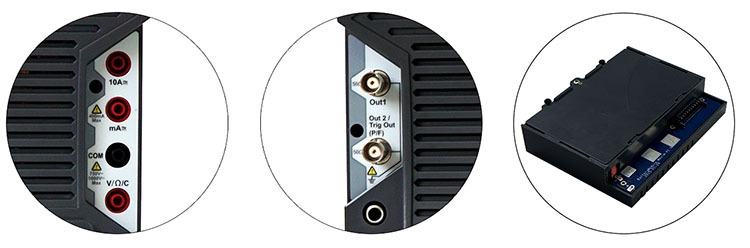

2. Multi-function mobile tester

Oscilloscope + signal generator + multimeter +data logger +frequency counter + decoder. Support Li-on battery to implement floating test.

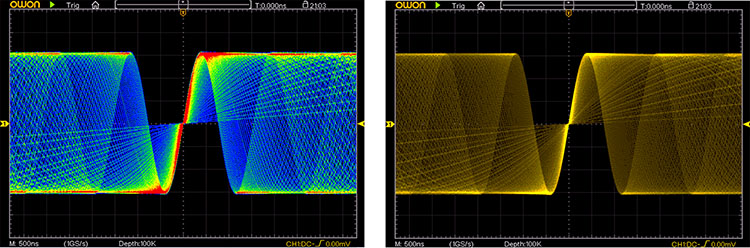

3. Max 70,000 frame/sec waveform refresh rate, muti-level gray scale and color temperature display.

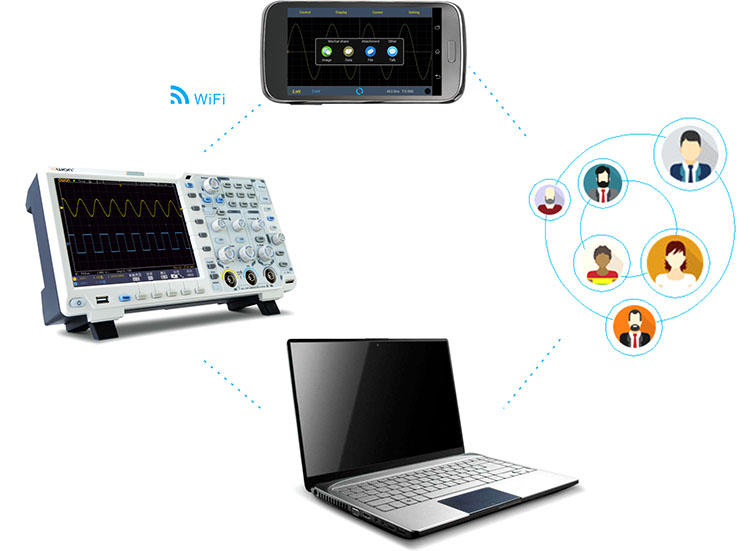

4. WiFi function

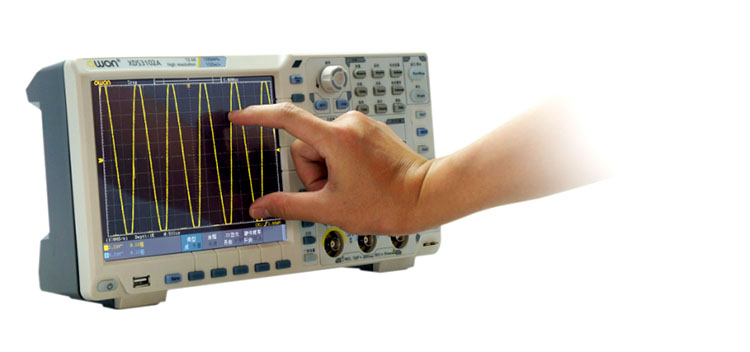

5. Multi-touch screen, easy to operate
