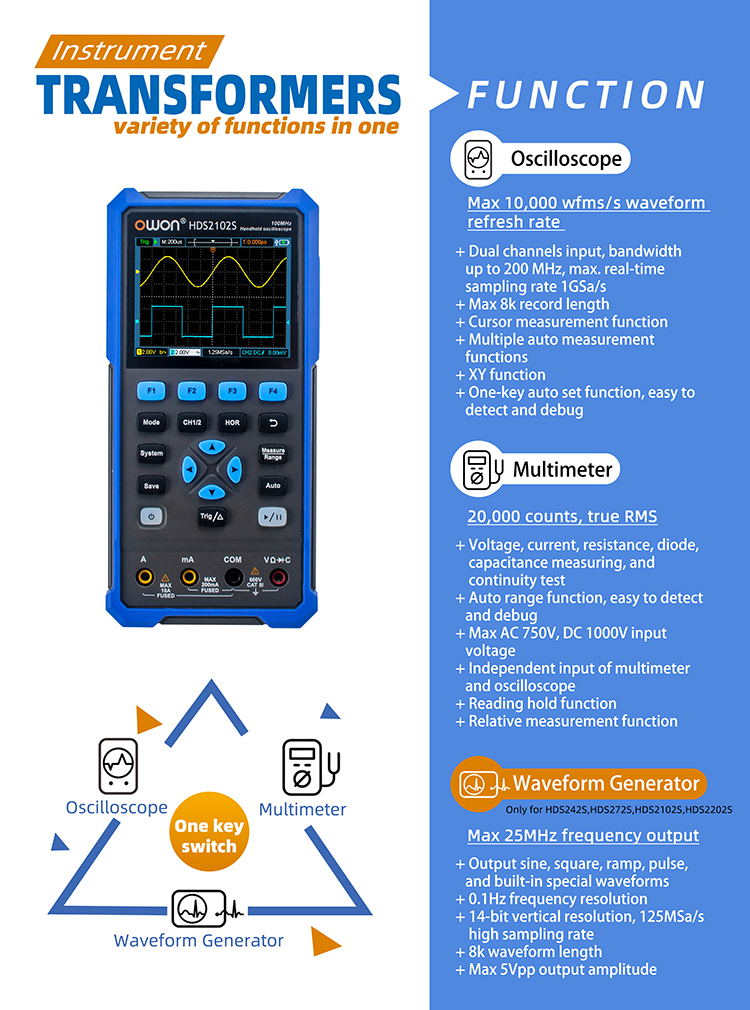

Model |
HDS242
|
HDS272
|
HDS2102
|
HDS2202
|
HDS242S
|
HDS272S
|
HDS2102S
|
HDS2202S
|
|
Bandwidth
|
40MHz
|
70MHz
|
100MHz
|
200MHz
|
40MHz
|
70MHz
|
100MHz
|
200MHz
|
|
Channels
|
2-CH Oscilloscope
|

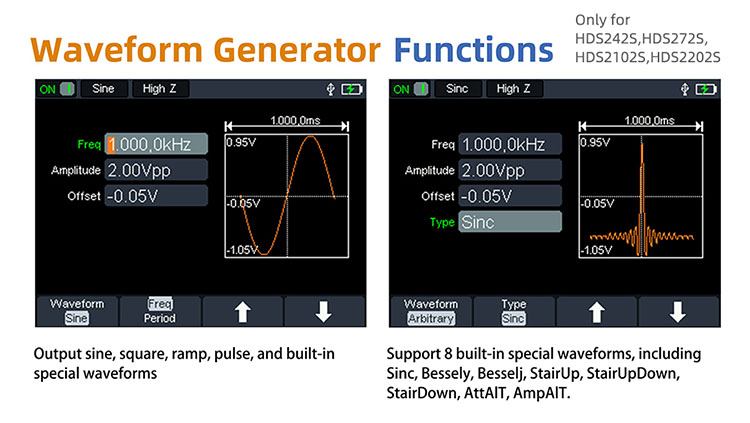

2-CH Oscilloscope+1-CH Generator
|
|
Sample Rate
|
250MSa/s
|
500MSa/s
|
1GSa/s
|
250MSa/s
|
500MSa/s
|
1GSa/s
|
|
|

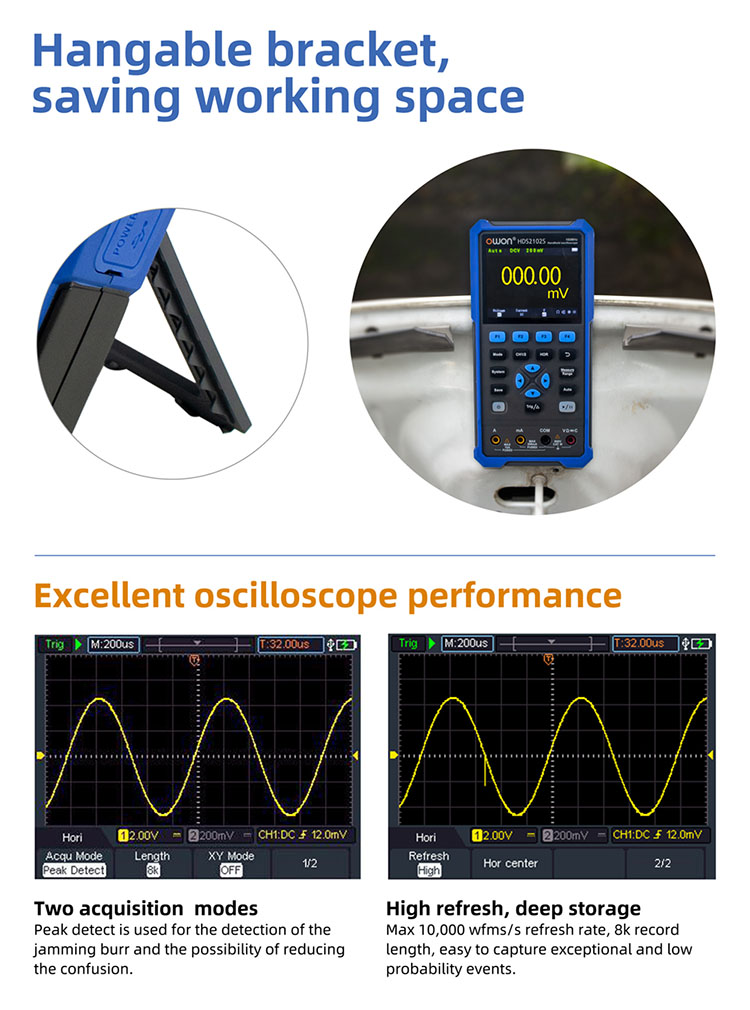

Normal, Peak detect
|
|
Record Length
|
8K
|
|

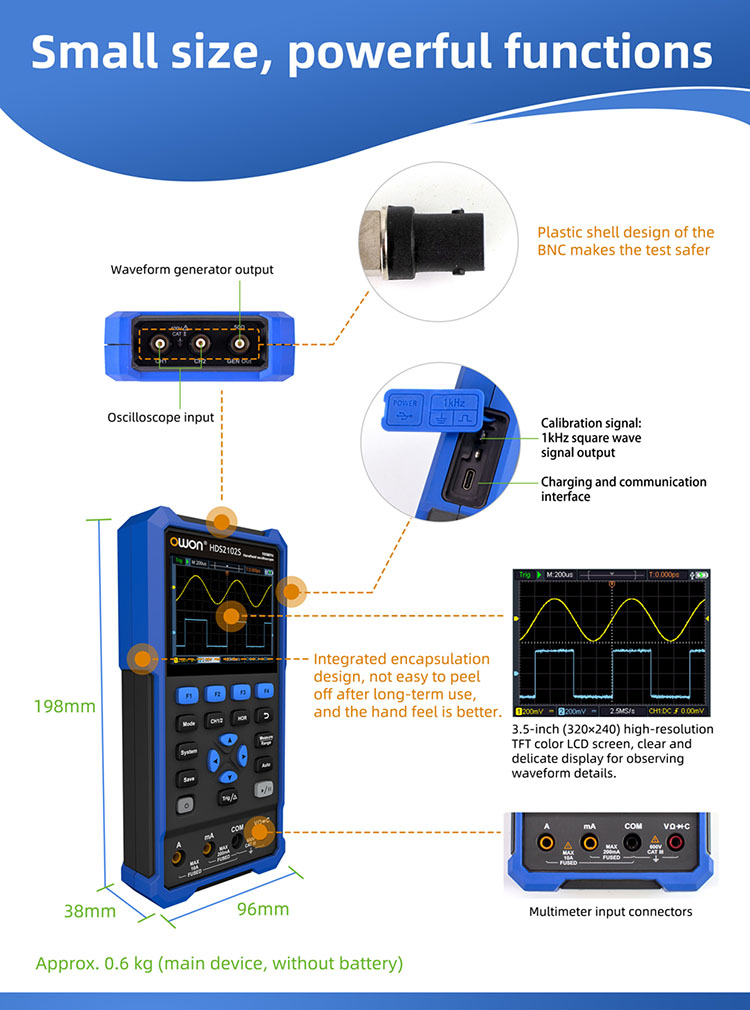

Display
|
3.5-inch LCD
|
|
Waveform Refresh Rate
|
10,000 wfrms/s
|
|
Input Coupling
|
DC, AC, and Ground
|
|
Input Impedance
|
1 MΩ±2%, in parallel with 16pF±10pF
|
|

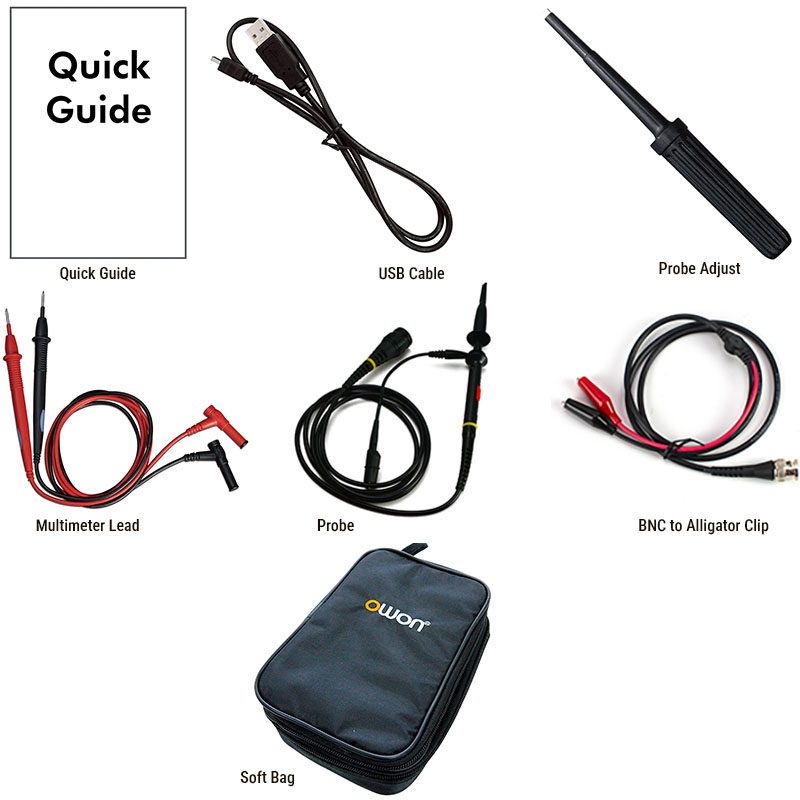

Probe Attenuation Factors
|
1X,10X,100X,1000X,10000X
|
|
Max. input Voltage
|
400V (DC+AC, PK-PK, 1MΩ input impedance) (10:1 probe attenuation)
|
|
Bandwidth Limit (typical)
|
20MHz
|
|
Horizontal Scale
|
5ns/div - 1000s/div, step by 1 - 2 - 5
|
2ns/div - 1000s/div, step by 1 - 2 - 5
|
5ns/div - 1000s/div, step by 1 - 2 - 5
|
2ns/div - 1000s/div, step by 1 - 2 - 5
|
|
Vertical Sensitivity
|
10mV/div - 10V/div
|
|
Vertical Resolution
|
8 bits
|
|
Trigger Type
|
Edge
|
|
Trigger Modes
|
Auto, Normal, single
|
|

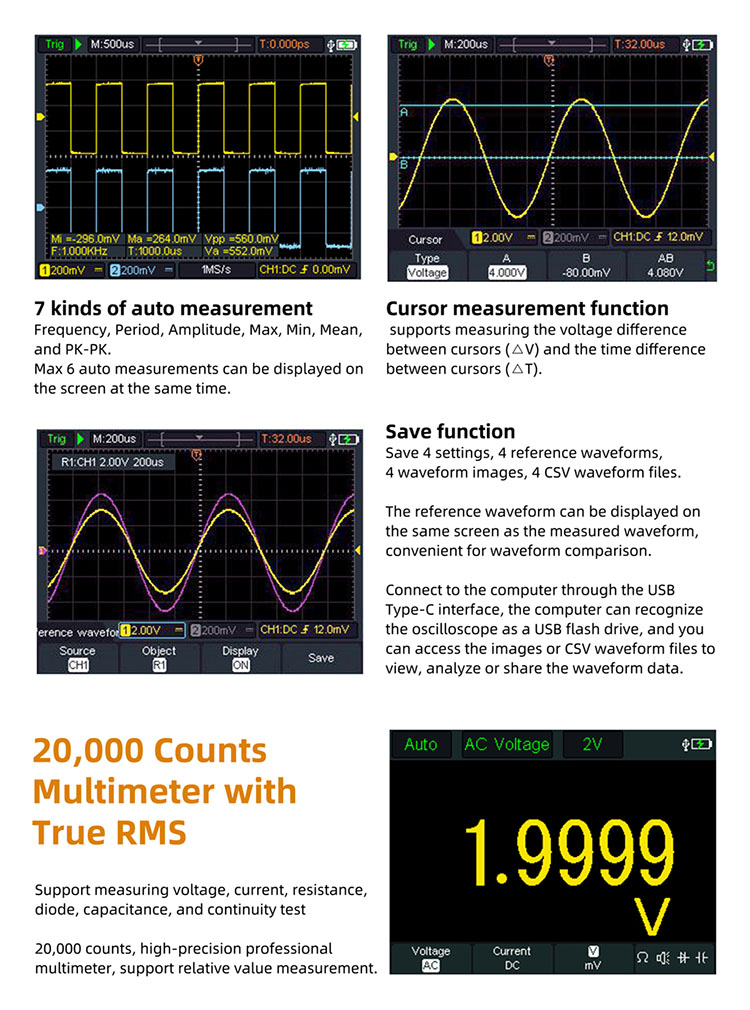

Automatic Measurement
|
Frequency, Period, Amplitude, Max, Min, Mean, PK-PK
|
|
Cursor Measurement
|
ΔV, ΔT, ΔT&ΔV between cursors
|
|

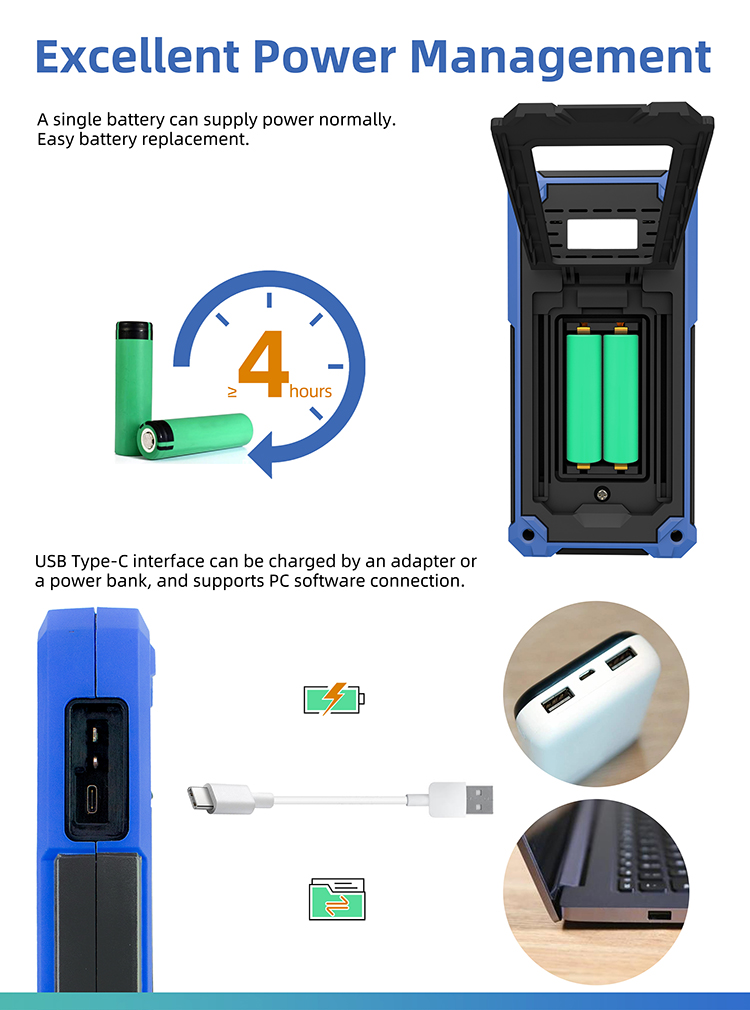

Communication Interface
|
USB Type-C
|
