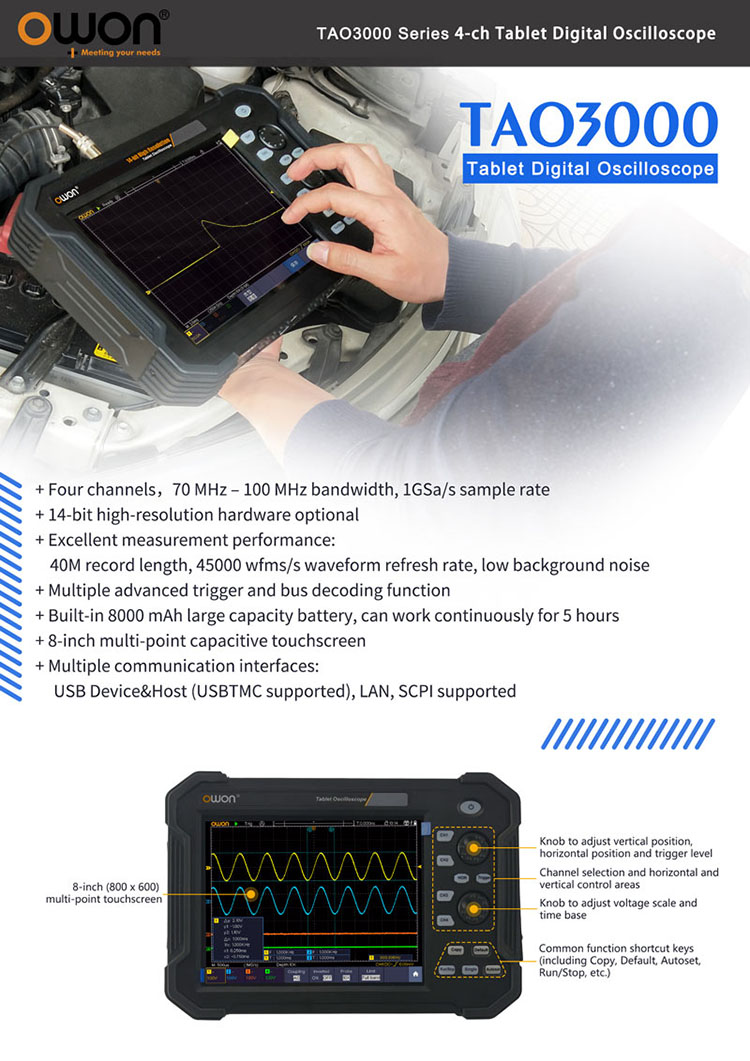

TAO3000 Series 4CH 8/14bit Tablet Oscilloscope

Производитель: ♦ OWON Fujian Lilliput Optoelectronics Technology Co., Ltd

Наличие уточняйте

+ Max 100MHz Bandwidth，1GS/s sample rate

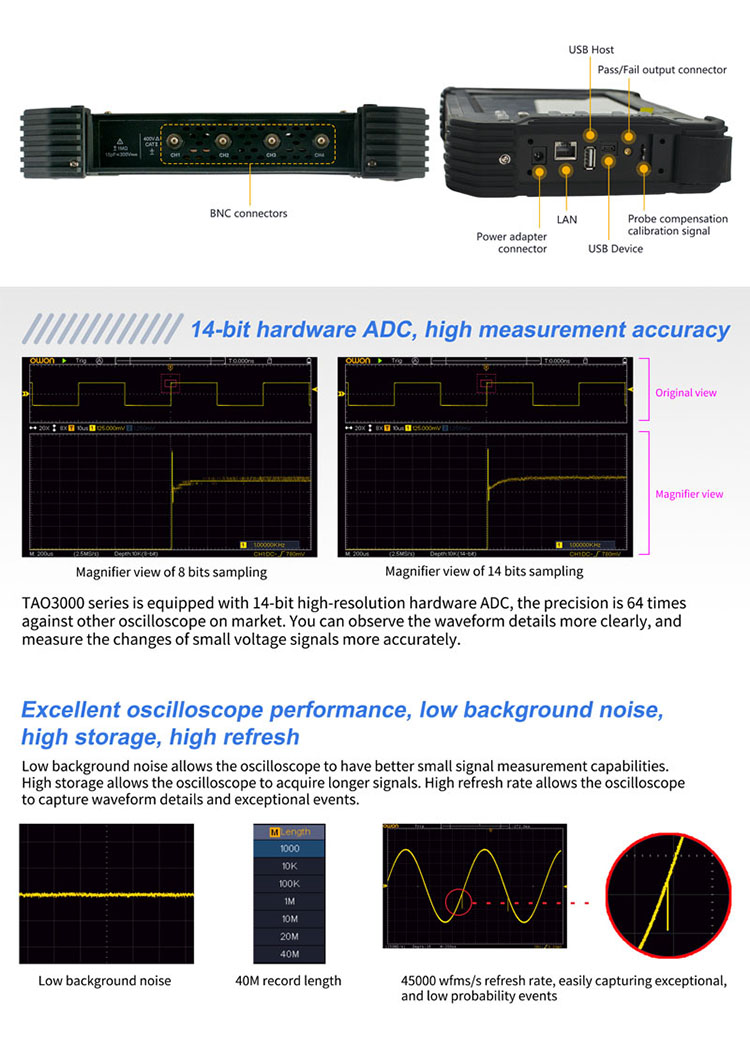

+ Max 14-bit high resolution ADC

+ Max 40M record length; max 45000 wfms/s waveform refresh rate

+ low back ground noise

+ 8 inch 800 x 600 high resolution LCD, multi-touch screen, more user-friendly operation experience

+ SCPI, and LabVIEW supported

+ multi- trigger, and bus decoding function

+ multi-interface integration - USB host, USB device,LAN, Wifi(optional)

Model	TAO3074	TAO3104	TAO3074A	TAO3104A
Bandwidth	70MHz	100MHz	70MHz	100MHz
Sample Rate	1GS/s
Vertical Resolution (A/D))	8 bits		8bits/12bits/14 bits
Record length	40M
Waveform Refresh Rate	45000 wfms/s
Horizontal Scale (s/div))	1ns/div - 1000s/div, step by 1 - 2 - 5
Channel	4
Display	8" color LCD, 800 x 600 pixels display，multi-touch screen
Input Impedance	1MΩ ± 2%, in parallel with 15pF ± 5pF
Max Input Voltage	1MΩ ≤ 300Vrms;
Probe Attenuation Factor	0.001X - 1000X, step by 1 - 2 - 5
Input Coupling	DC, AC, GND
Vertical Sensitivity	1mV/div - 10V/div (at input)
Trigger Type	Edge, Video, Pulse, Slope, Runt, Windows, Timeout, Nth Edge, Logic, I2C, SPI, UART(RS232), and CAN (optional)
Bus Decoding(optional)	I2C, SPI, UART(RS232), CAN
Trigger Mode	Auto, Normal, and Single
Automatic Measurement	Vpp, Vavg, Vrms, Freq, Period, Week RMS, Cursor RMS, Vmax, Vmin, Vtop, Vbase, Vamp, Overshoot, Phase A→B ↑, Phase A→B↓, Preshoot, Rise Time, Fall Time,+Width, -Width, +Duty, -Duty, Duty Cycle, Delay A→B ↑, Delay A→B↓, +Pulse Count, -Pulse Count, Rise Edge Count, Fall Edges Count, Area, Cycle Area
Waveform Math	＋, －, ×, ÷, FFT，FFTrms,Intg,Diff,Sqrt, User Defined Function, Digital Filter
Waveform Storage	100 waveforms
Communication Interface	USB host, USB device, USB port for PictBridge,LAN, and WIFI (optional)
Frequency Counter	available
Battery	7.4V, 8000mAh， 5 hours operation
Dimension(WxHxD)	270x191x48
Device Weight	About 1.7kg
