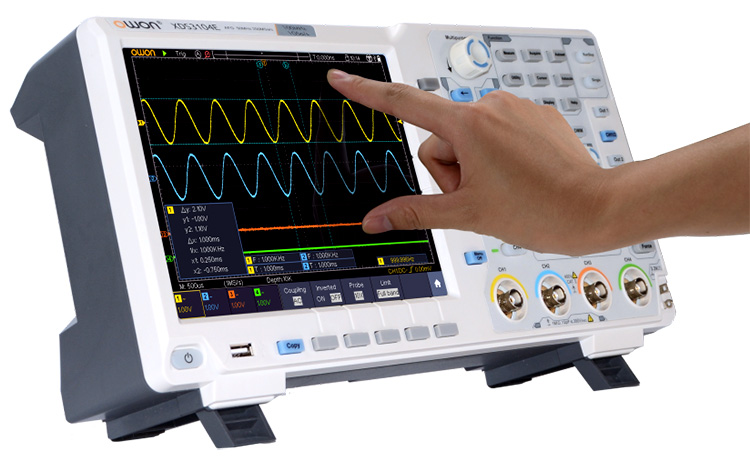

| Model |
XDS3064E |
XDS3104E |
XDS3064AE |
XDS3104AE |
XDS3104 |
XDS3204E |
XDS3204AE |
|
| Bandwidth |
60MHz |
100MHz |
60MHz |
100MHz |
200MHz |
|
| Sample Rate |
1GS/s |
1GS/s (500MS/s for each channel) |
1GS/s |
|
| Vertical Resolution (A/D)) |
8 bits |
14 bits |
8 bits |
14 bits |
|
| Record length |
40M |

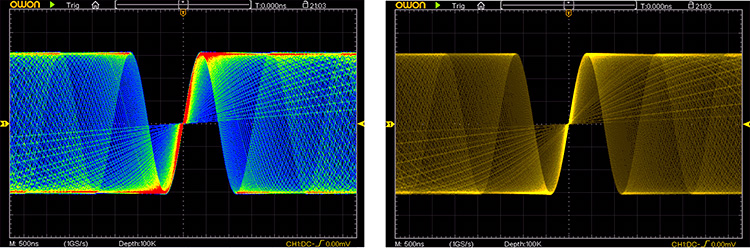

| Waveform Refresh Rate |
45,000 wfms/s |
70,000 wfms/s |
| Horizontal Scale (s/div)) |
2ns/div - 1000s/div, step by 1 - 2 - 5 |
1ns/div - 1000s/div, step by 1 - 2 - 5 |
| Channel |
4 |
| Display |
8" color LCD, 800 x 600 pixels display |
| Sample Rate / Relay Time Accuracy |
±2.5 ppm |
| Input Coupling |
DC, AC, GND |
| Vertical Sensitivity |
1mV/div - 10V/div (at input) |
| Trigger Type |
Edge, Video, Pulse, Slope, Runt, Windows, Timeout, Nth Edge, Logic, I2C, SPI, RS232,
and CAN (optional) |
| Bus Decoding(optional) |
I2C, SPI, RS232, CAN |
| Trigger Mode |
Auto, Normal, and Single |
| Vertical Range |
±2V(1mV/div～50mV/div)；±20V(100mV/div～1V/div)；±200V(2V/div～10V/div) |
| Waveform Math |
+, -, *, /, FFT, Intg, Diff, Sqrt, and user defined function |

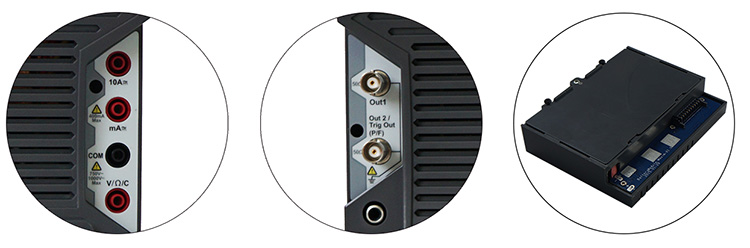

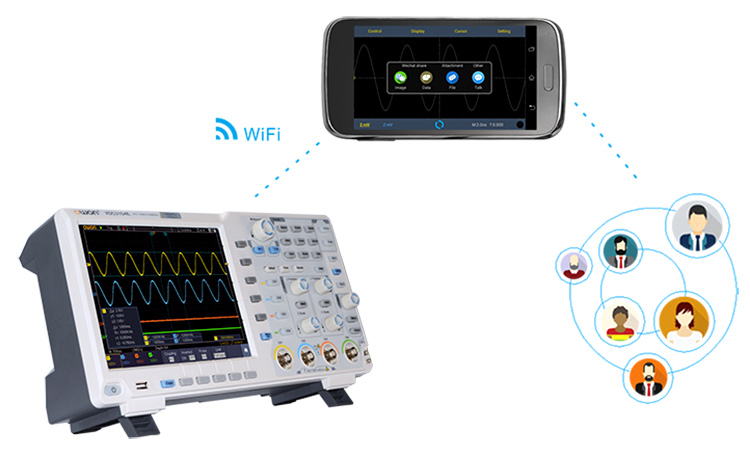

| Communication Interface |
USB host, USB device, USB port for PictBridge, Trig Out (P/F), LAN, and VGA (optional) |
| Frequency Counter |
available |
| Power Supply |
100V - 240V AC, 50/60Hz, CAT II |
| Fuse |
2A, T class, 250V |

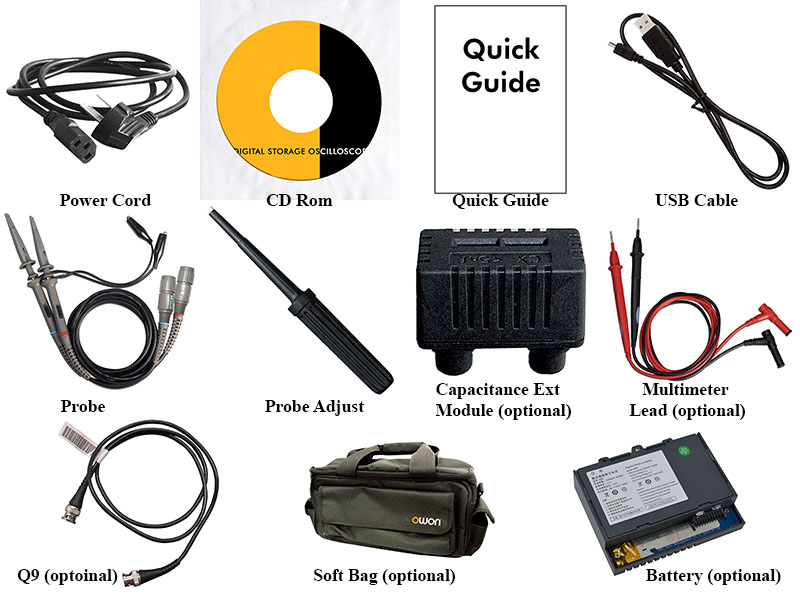

| Battery (optional) |
3.7V, 13200mA |
| Dimension (W x H x D) |
340mmx177mmx90mm |
