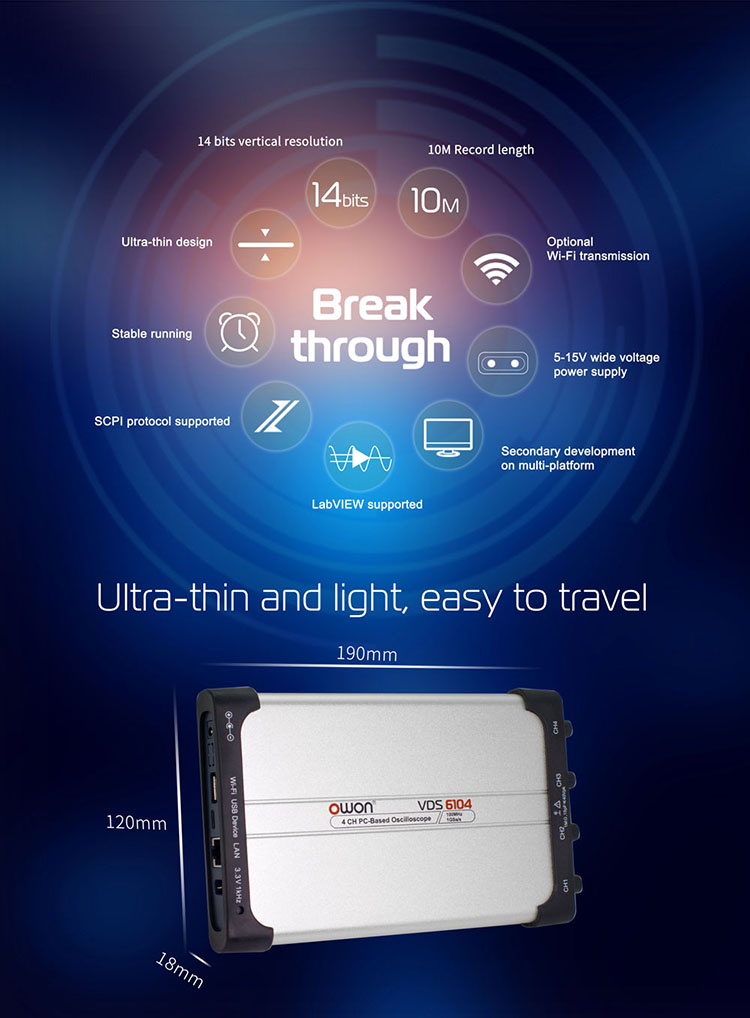

+ 4 channels ultra thin design
+ Up to 100MHz bandwidth, and max 1GS/s real-time sample rate
+ 8 bits, 12 bits, 14 bits vertical accuracy, more accurate measurement

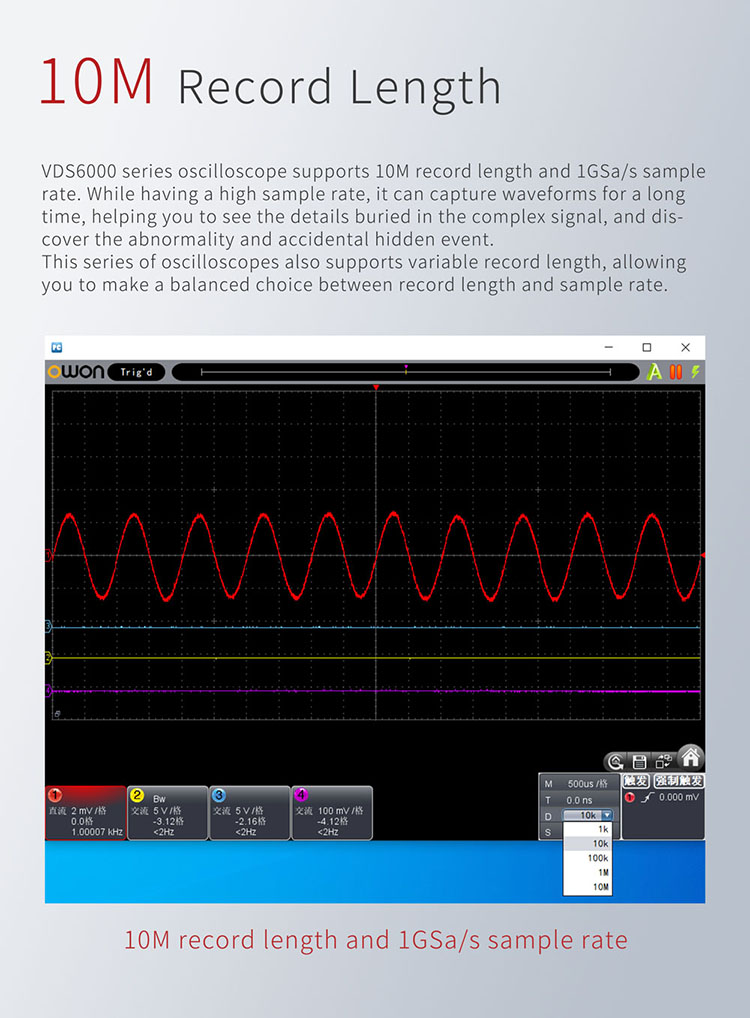

+ Max 10M record length
+ Friendly UI : X-Y, and waveform 2 views displayed on the same screen
+ SCPI、LABVIEW supported
+ Support the secondary development of windows / Linux / Android / Ios platform

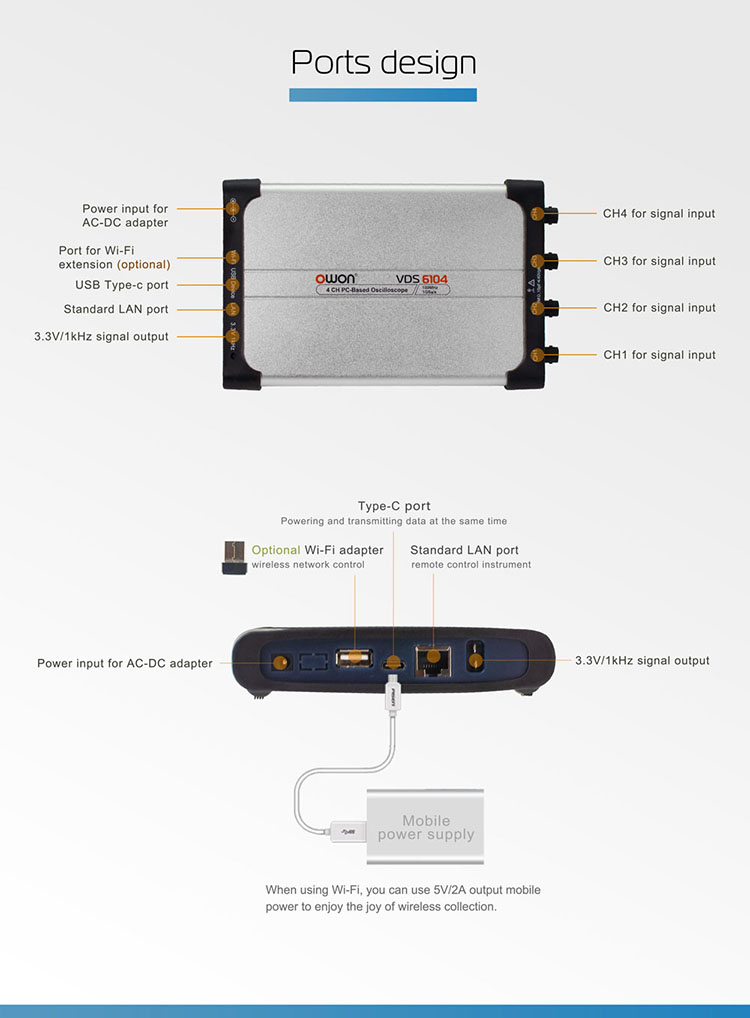

+ USB typ-c power supply, faster data transmission, support 5-15v wide voltage power supply
+ WIFI unlimited transmission, more convenient to use.
(WiFi accessories are required)
Model
VDS6074
VDS6104
VDS6074A
VDS6104A
Bandwidth
70MHz
100MHz
Channel
4 channels
Sample Rate
1GSa/s
Horizontal Scale (s/div)
1ns/div～100s/div， step by 1～2～5
Sampling mode
General sampling, peak detection, average
Record Length
10M
Input Coupling
DC, AC, GND
Input Impedance
1MΩ±2%，in parallel with15pF±5pF
Vertical Sensitivity
2mV/div～5V/div
Vertical Resolution (A/D)
8bits
8bits/12 bits/14 bits
Max Input Voltage
40V Peak value（DC + AC Peak value）
Bandwidth limitation
20 MHz，full bandwidth
Probe Attenuation Factor
1X，10X，100X，1000X
Trigger Type
Edge, Pulse,Video, Slope,
Trigger Mode
Auto, Normal, and Single
Cursor Measurement
△V, and △T between cursors
Automatic Measurement
Vpp, Vmax, Vmin, Vtop, Vbase, Vamp, Vavg, Vrms, Overshoot, Preshoot, Freq, Period, Rise Time, Fall Time, Delay A→B , Delay A→B , +Width, -Width, +Duty, -Duty
Communication Interface
USB Device (Typ-c)；USB Host ; LAN, WIFi(optional)
frequency counter
support
Dimensions (W × H × D)
190mm×120mm×18mm
Device Weight
About 0.45kg

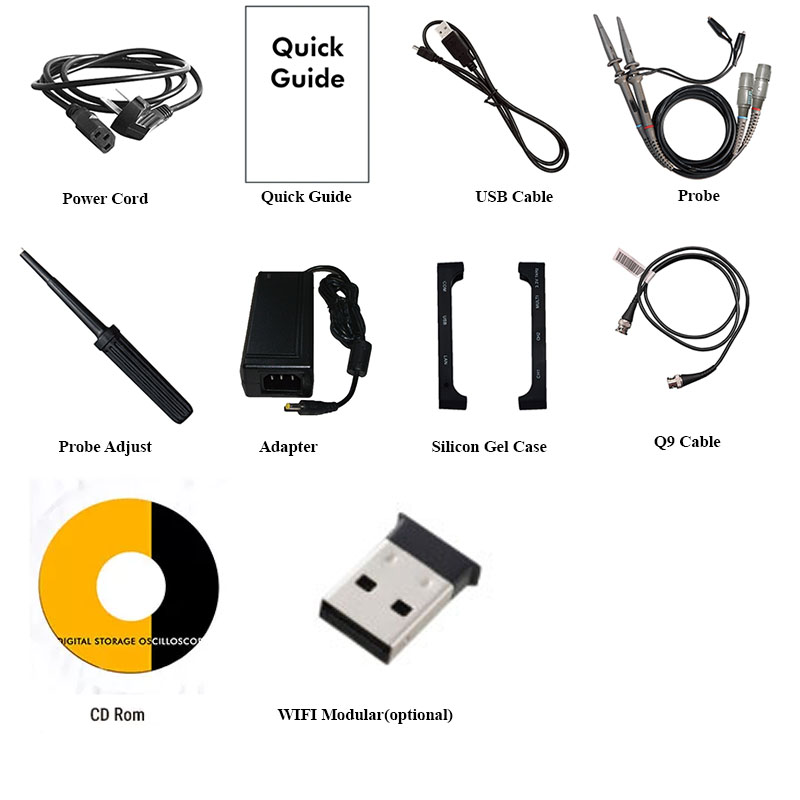

▶ User Manual For VDS6000 Series 4CH PC DSO
▶ Quick Guide for VDS6000 Series 4CH PC DSO
