Dual-channel, ultra-thin body design.
100MHz bandwidth, and 1GSa/s real-time sampling rate.
Standard built-in 5MHz signal generator.

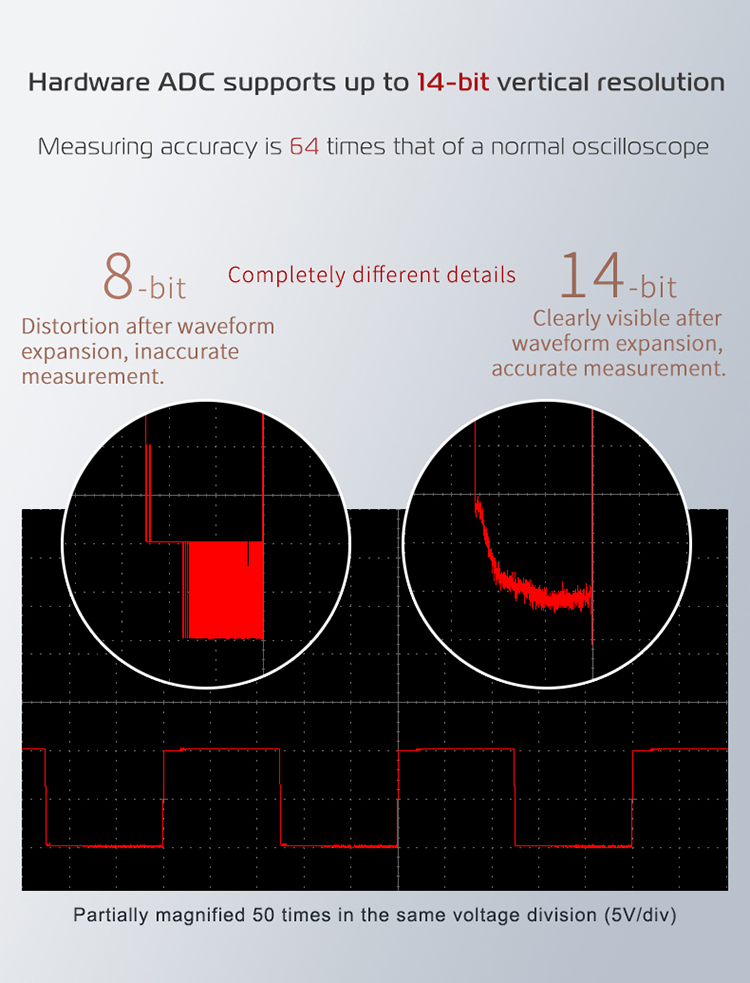

8-bit, 12-bit, 14-bit vertical resolution, more accurate measurement.
Max. 10M record length.

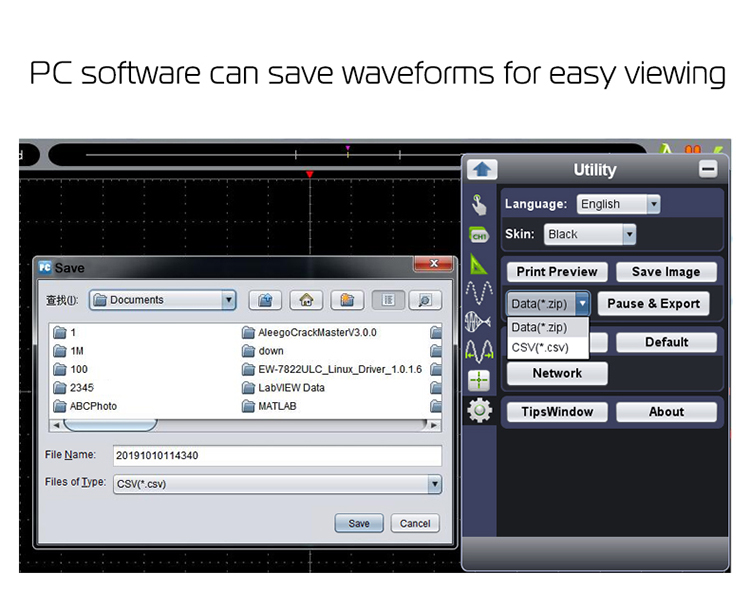

Friendly UI, X-Y and waveform can be displayed on the same screen.

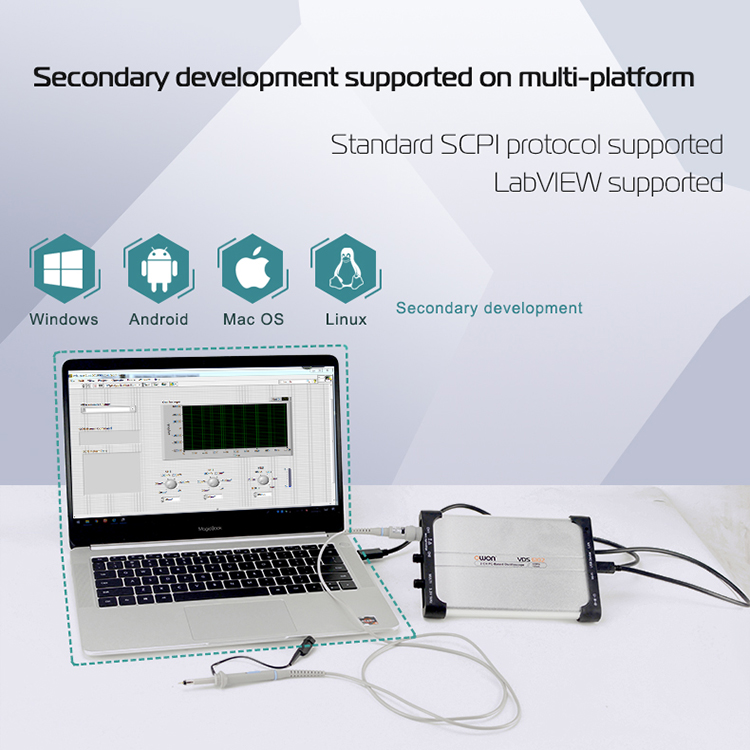

Standard SCPI protocol supported, LabVIEW supported.
Secondary development supported on Windows, Linux, Android, and iOS platform.

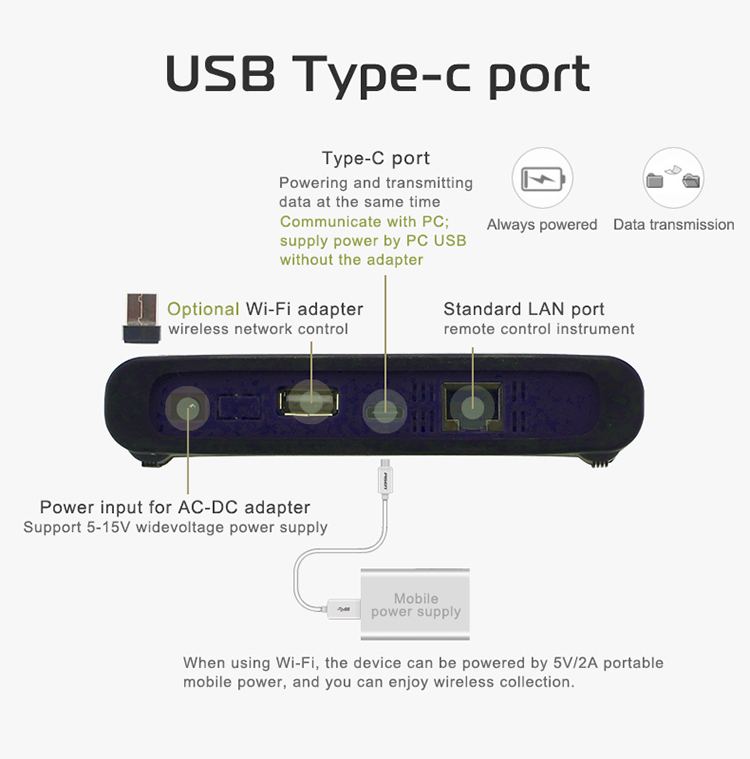

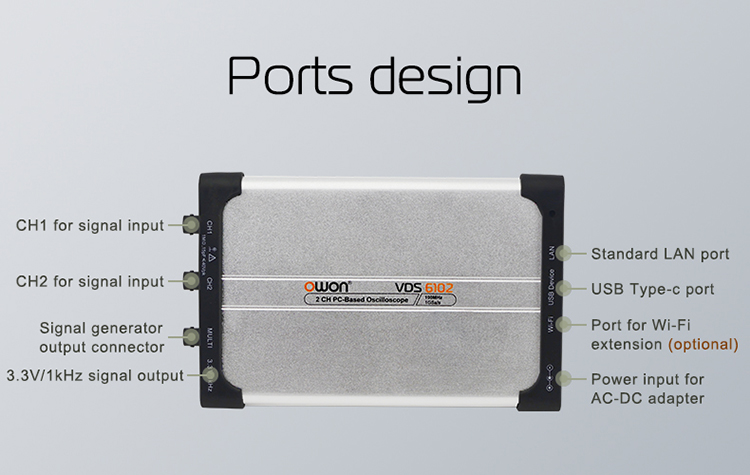

USB Type-C powered, faster data transmission, support 5-15V wide voltage power supply.
WiFi wireless transmission, more convenient to use. (Need to choose Wi-Fi accessories)
Product Details
Specifications
|
Model
|
VDS6102
|
VDS6102A
|
|
bandwidth
|
100MHz
|
100MHz
|
|
channel
|
2CH scope + 1CH FG
|
|
Sample rate
|
Max 1GSa/s
|
|
Rise time
|
≤3.5 ns
|
|
Horizontal scale
|
5ns/div～100s/div，step by 1～2～5
|
|
Sampling Mode
|
sample, peak detect, average
|
|
Rcord length
|
10M
|
|
Input Coupling
|
DC, AC, ground
|
|
Input Impedance
|
1 MΩ ± 2%, in parallel with 15 pF ± 5 pF
|
|
Vertical Sensitivity
|
2mV/div～5V/div
|
|
Vertical Resolution (A/D
|
8bits
|
14bits
|
|
Max Input Voltage
|
40 V (DC + AC Peak)
|
|
Probe Attenuation Factor
|
1X，10X，100X，1000X
|
|
Channel isolation
|
50Hz: 100 : 1，10MHz: 40 : 1
|
|
Interpolation
|
Sin(x)/x
|
|
Vertical Range
|
±2 V (2 mV/div – 50 mV/div)；
±20 V (100 mV/div – 500m V/div)；
±40 V (1 V/div – 5 V/div)
|
|
LF Respond (AC, -3dB)
|
≥5Hz (at input, AC coupling, -3dB)
|
|
Trigger Type
|
edge, video, slope, pulse
|
|
Line/Field Frequency (video)
|
supported standards: NTSC, PAL and SECAM broadcast systems
|
|
Trigger Mode
|
auto, normal, single
|
|
Lissajous Figure
|
Bandwidth
|
full bandwidth
|
|
Phase Difference
|
±3 degrees
|
|
Automatic Measurement
|
Vpp, Vmax, Vmin, Vtop, Vbase, Vamp, Vavg, Vrms, Overshoot, Preshoot, Freq, Period, Rise Time, Fall Time, Delay A→B, Delay A→B, +Width, -Width, +Duty, -Duty
|
|
Communication Interface
|
USB (Typ-c)；LAN, WIFi (optional)
|
|
Power Consumption
|
≤8W
|
|
Dimensions (W × H × D)
|
190mm×120mm×18mm
|
|
Device Weight
|
≈0.38 kg
|
|

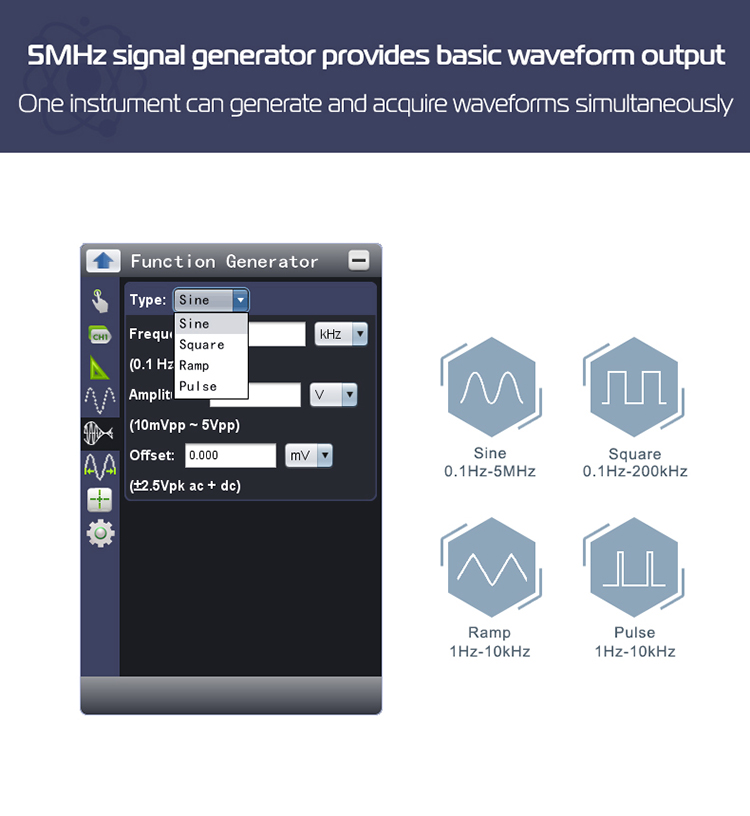

Function Generator
|
|
Standard Waveforms
|
Sine (0.1 Hz - 5 MHz), Square（0.1 Hz-200 kHz), Ramp（1 Hz-10 kHz), Pulse（1 Hz-10 kHz）
|
|
Frequency Output
|
5 MHz
|
|
Sampling Rate
|
25M Sa/s
|
|
Channel
|
1
|
|
Vertical Resolution
|
10bits
|
|
Amplitude Range
|
10mVpp - 5Vpp
|
|
DC Offset Range (AC+DC)
|
±2.5V
|
|
Output Impedance
|
50 Ω (typical)
|
Support

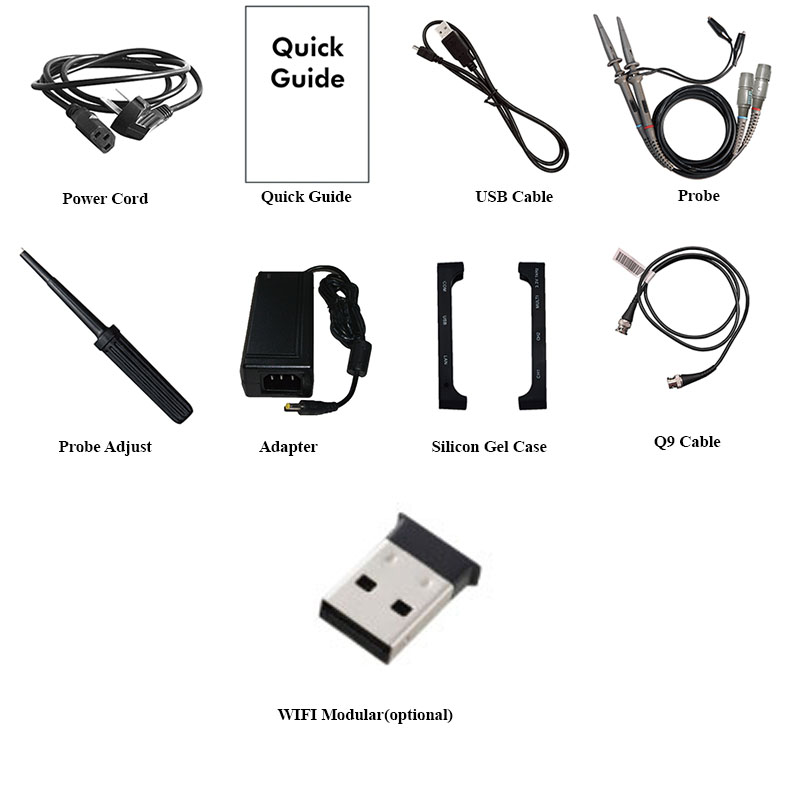

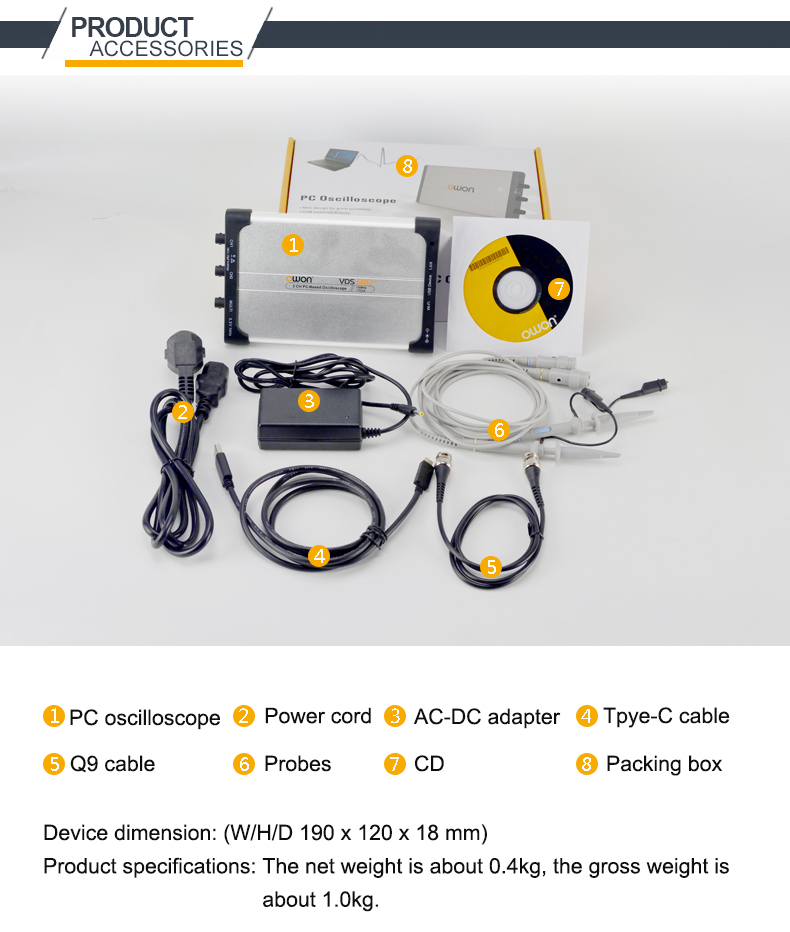

Accessories
