We are known as one of world's leading China manufacturers and suppliers. Welcome to buy the famous brands' OWON vds series pc oscilloscope, computer oscilloscope, online oscilloscope, pc usb oscilloscope, computer based oscilloscope, best usb oscilloscope with cheap price from us. We have many products in stock at your choice. Consult the quotation with us now.
1. Ultra-thin body design, easy portability

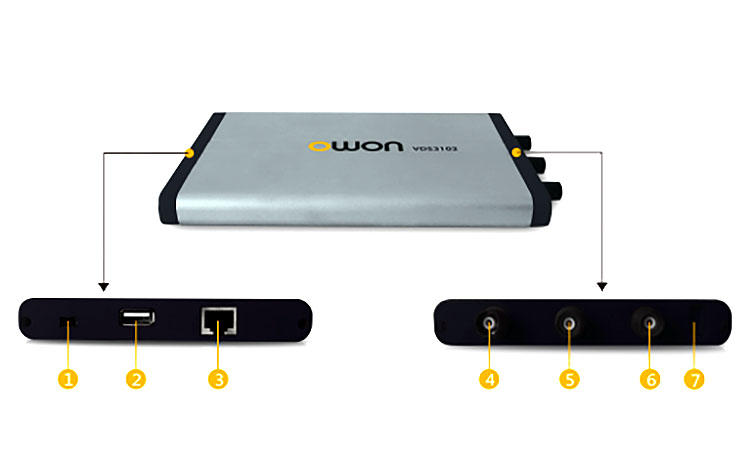

1. RS232 port (optional)
2. USB port : power supplying via USB bus, communicating with PC
3. LAN port (optional) : remote control
4. Channel 1 signal input
5. Channel 2 signal input
6 .EXT trigger input, trigger output, or Pass/Fail output
7. probe compensation : measurement signal (3.3V/1KHz) output
Note : When communicating with PC via LAN, the oscilloscope should be powered by adapter.

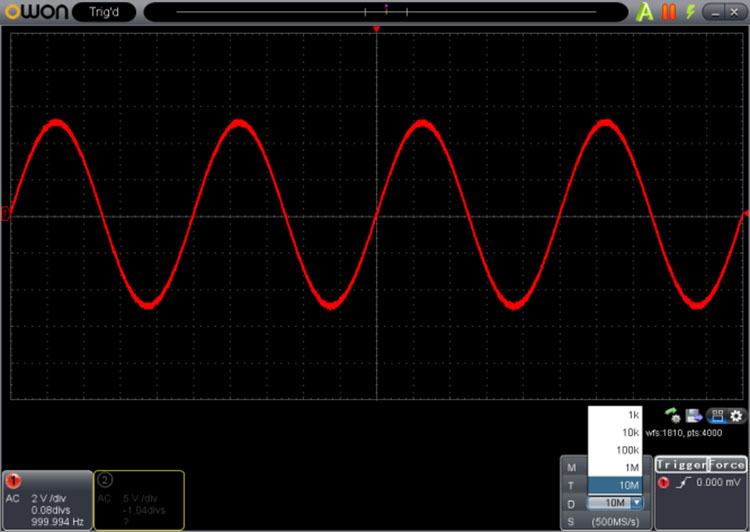

2. Record length up to 10M
Various record length option, max 10M.

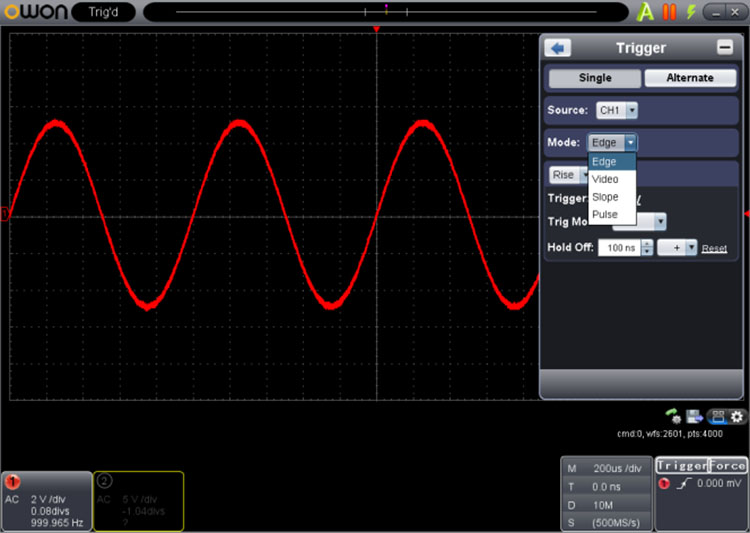

3. Multi-trigger option
Edge, Video, Slope, Pulse, and Alternate

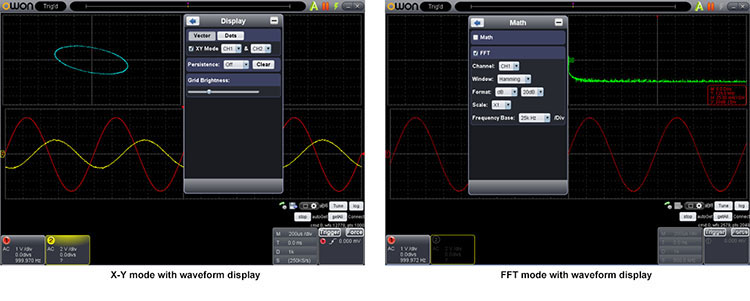

4. X-Y mode, FFT mode with waveform displayed on the same screen
