TAO3000 Series 2CH 8/14bit Tablet Oscilloscope

Производитель: ♦ OWON Fujian Lilliput Optoelectronics Technology Co., Ltd

Наличие уточняйте

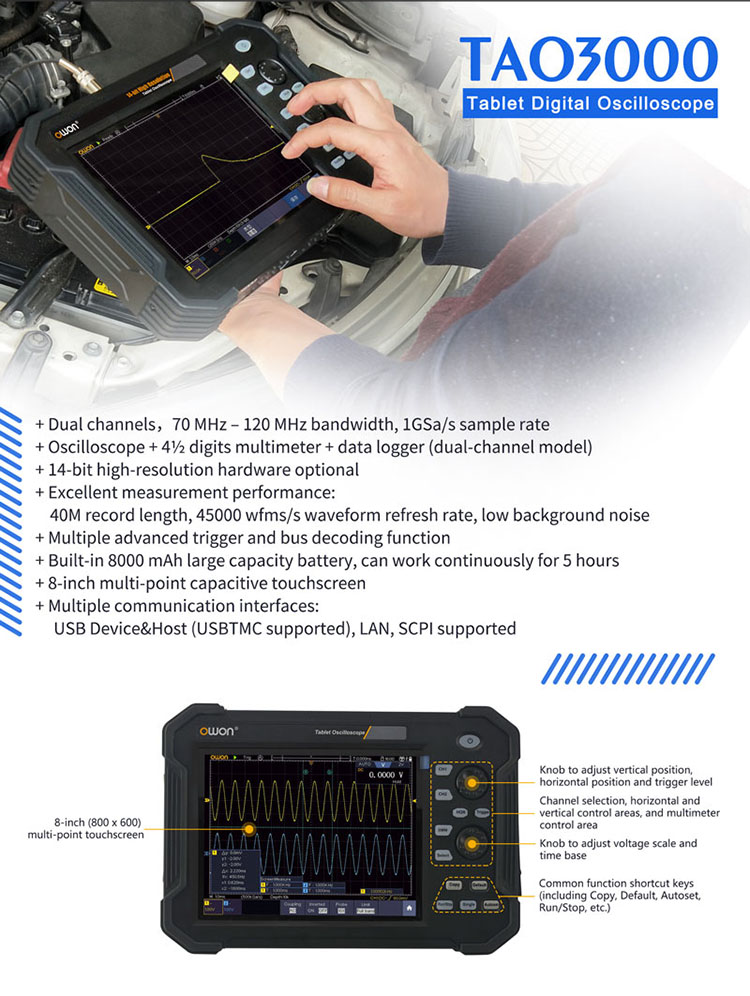

+ Dual channels, 70MHz-120MHz bandwidth, 1GS/s sample rate

+ Ocilloscope+ 4 1/2 digits multimeter+data logger

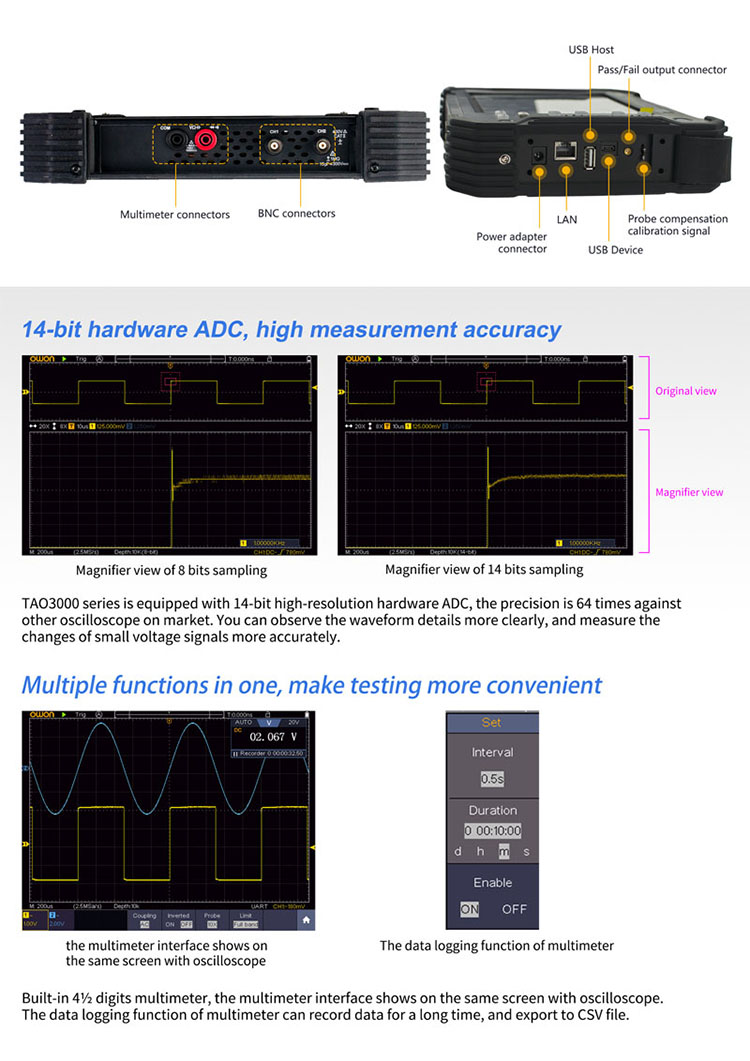

+ Optional 14-bit high resolution ADC

+ Max 40M record length; max 45,000 wfms/s waveform refresh rate

+ Built-in 8000mAh large capacity battery, can word continuously for 5 hours

+ 8 inch multi=point capacitive touchscreen

+ SCPI, and LabVIEW supported

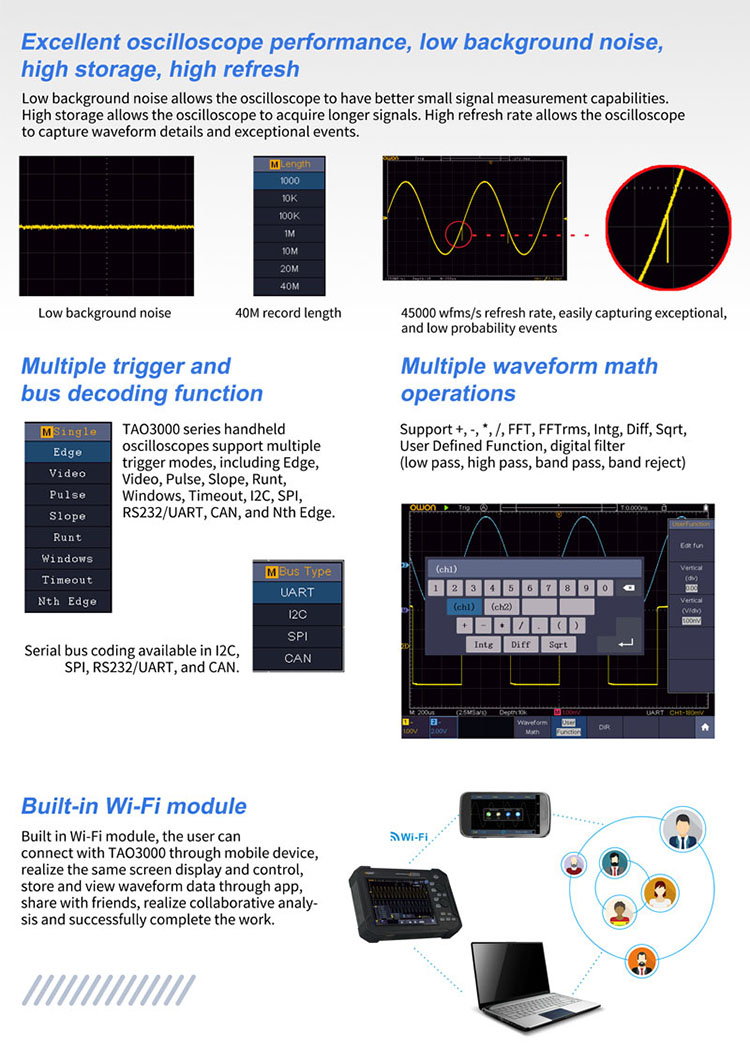

+ multi- trigger, and bus decoding function

+ multi-interface integration - USB host, USB device,LAN,WIFI(optional)

Model	TAO3072	TAO3102	TAO3122	TAO3072A	TAO3102A	TAO3122A
Bandwidth	70MHz	100MHz	120MHz	70MHz	100MHz	120MHz
Sample Rate	1GS/s
Vertical Resolution (A/D))	8 bits			8bits/12bits/14 bits
Record length	40M
Waveform Refresh Rate	45,000 wfms/s
Horizontal Scale (s/div))	1ns/div - 1000s/div, step by 1 - 2 - 5
Channel	2
Display	8" color LCD, 800 x 600 pixels display，multi-touch screen
Input Impedance	1MΩ ± 2%, in parallel with 15pF ± 5pF
Max Input Voltage	1MΩ ≤ 300Vrms;
DC Gain Accuracy	±3%
Probe Attenuation Factor	0.001X - 1000X, step by 1 - 2 - 5
Sample Rate / Relay Time Accuracy	±2.5ppm
Input Coupling	DC, AC, GND
Vertical Sensitivity	1mV/div - 10V/div (at input)
Trigger Type	Edge, Video, Pulse, Slope, Runt, Windows, Timeout, Nth Edge, Logic, I2C, SPI, RS232, and CAN (optional)
Bus Decoding(optional)	I2C, SPI, RS232, CAN
Trigger Mode	Auto, Normal, and Single
Automatic Measurement	Vpp, Vavg, Vrms, Freq, Period, Week RMS, Cursor RMS, Vmax, Vmin, Vtop, Vbase, Vamp, Overshoot, Phase A→B ↑, Phase A→B↓, Preshoot, Rise Time, Fall Time,+Width, -Width, +Duty, -Duty, Duty Cycle, Delay A→B ↑, Delay A→B↓, +Pulse Count, -Pulse Count, Rise Edge Count, Fall Edges Count, Area, Cycle Area
Waveform Math	＋, －, ×, ÷, FFT，FFTrms,Intg,Diff,Sqrt, User Defined Function, Digital Filter
Waveform Storage	100 waveforms
Communication Interface	USB host, USB device, USB port for PictBridge,LAN, and WIFI (optional)
Frequency Counter	available
Battery	7.4V, 8000mAh， 5 hours operation

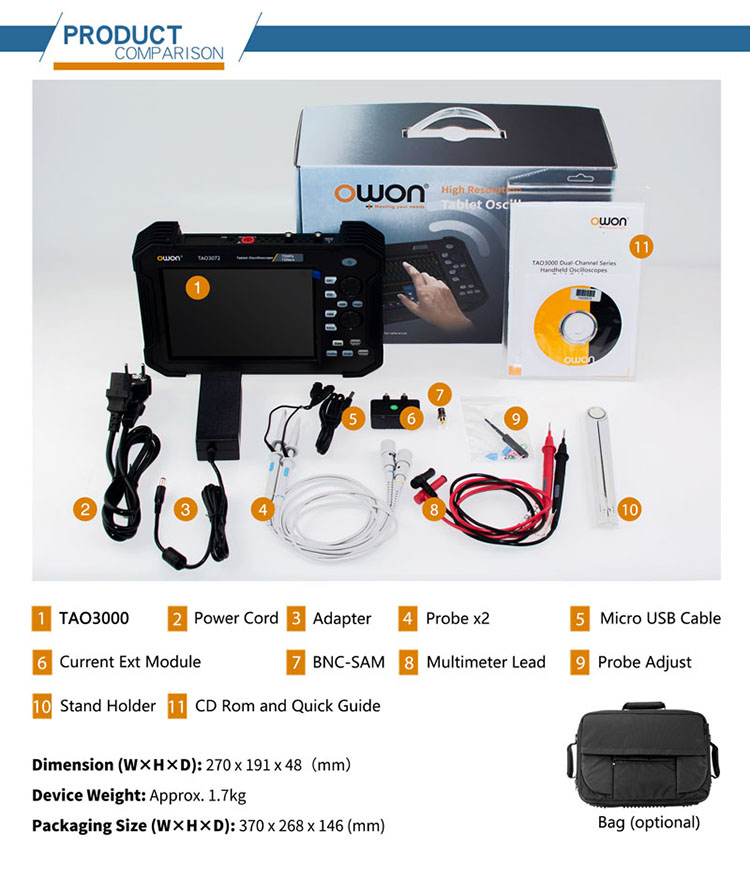

Dimension(WxHxD)	270x191x48（mm）
Device Weight	About 1.7kg

＋Multiemeter Specifications（only apply for 2 channels model）

Display	Voltage	Current	Impedance	Diode	Auto Ranging
4 1/2 digitals	mV: 20.000mV - 200.00mV DCV: 2.0000V - 1000.0V ACV: 2.0000V - 750.0V	ACD: 20.00A ACA:20.00A	200.00Ω - 100.00MΩ	√	√
