Model
|
AS101
|
AS201
|
|
Bandwidth
|
DC:0~10MHz,
AC: 10 Hz~10MHz
|
DC:0~20MHz,
AC: 10 Hz~20MHz
|
|
Channel
|
1
|
|
Horizontal system
|
Sample Rate
|
100MS/s
|
|
Interpolation
|
(Sinx)/x
|
|
Scanning speed (S/DIV)
|
0.05us/DIV ~ 0.1s/DIV,step by 1 – 2 - 5
|
|
relay time accuracy
|
±100 ppm
|
|
Trimming Ratio
|
≧2.5:1
|
|
Vertical system
|
Sensitivity
|
5 mV/DIV～10 V/DIV
|
|
Displacement
|
±10DIV
|
|
Low Frequency
|
≥10 Hz (at input, AC coupling, -3 dB)
|
|
Rise time (at input, Typical)
|
≤ 30 ns
|
|
Trimming Ratio
|
≧2.5:1
|
|
Input coupling
DC, AC , Ground
|
|
Input impedance
|
1 MΩ±2%, in parallel with 20 pF±5 pF
|
|
Max. input voltage
|
400V (DC+AC, PK - PK)
|
|
X-Y Model
|
|
Sensitivity
|
X:0.5V/DIV Y:0.1V/DIV ~ 1V/DIV
|
|
Bandwidth(-3dB)
|
DC: 0 ~ 1MHz AC: 10Hz ~ 1MHz
|
|
Trigger
|
|
Trigger level range
|
±4 DIV from the screen center
|
|
Trigger level Accuracy (typical)
|
±0.3 DIV
|
|
Trigger Sources
|
Int, Line, Ext
|
|
Trigger Mode
|
Norm, AUTO, TV
|
|
Edge trigger
|
Rising, Falling
|
|
Video Trigger
|
Support standard NTSC, PAL and SECAM broadcast systems
|
|
Sample Rate / Relay Time
|
±100ppm
|
|

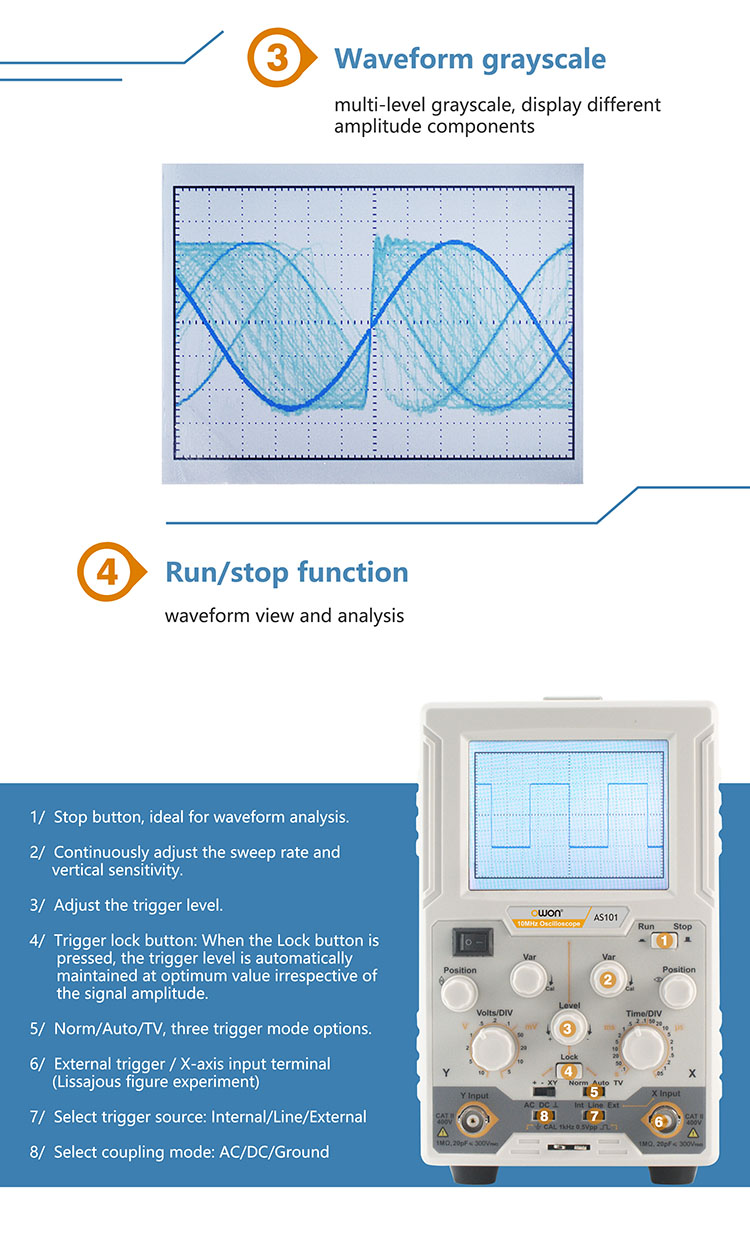

Trigger lock
|
support
|
|
Ext. Trigger Input Impedance
|
1 MΩ±2%, in parallel with 20 pF±5 pF
|
|
Ext. Trigger Max. Input Voltage
|
400Vpp
|
|

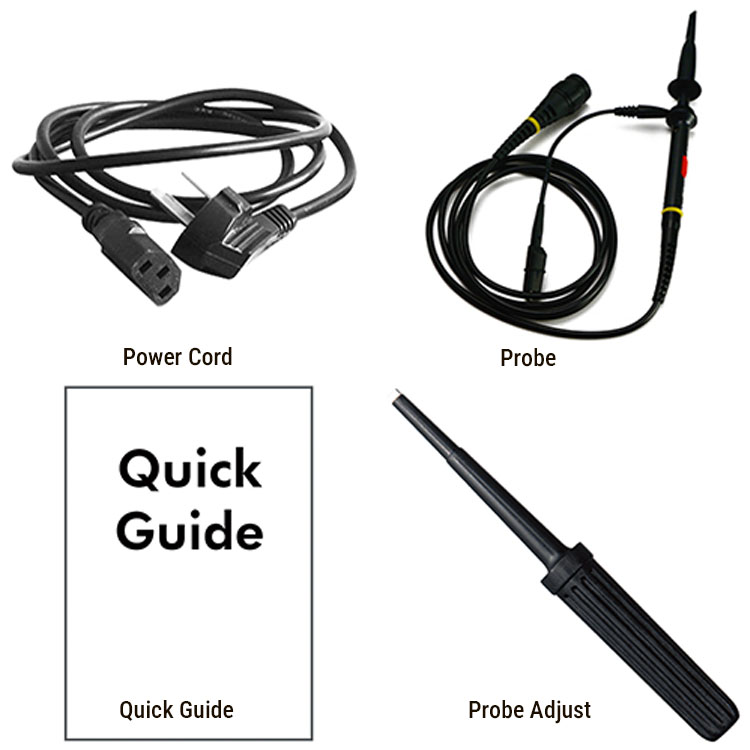

Trigger Output of the probe compensator
|
|
Output Voltage (Typical)
|
Square, 0.5Vpp±2%
|
|
Frequency (Typical)
|
Square wave of 1 kHz(±1%)
|
|
Display
|

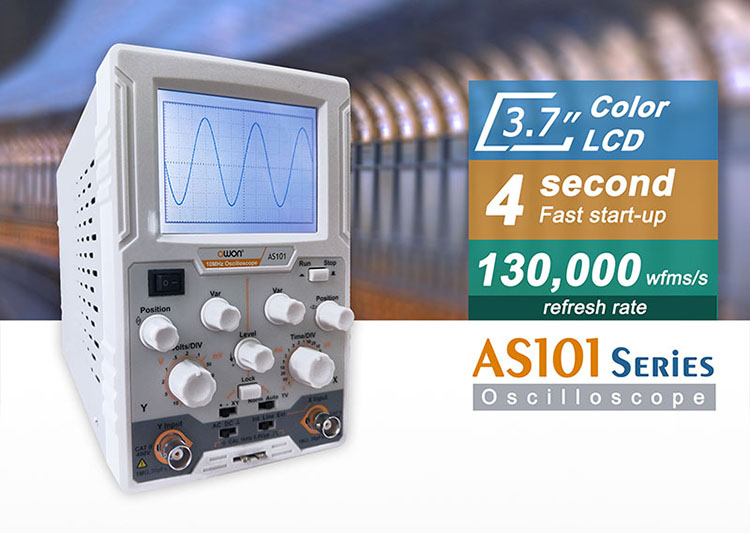

3.7" Colored LCD (Liquid Crystal Display)
|
|
Power Supply
|
100V - 240V AC, 50/60Hz, CAT II
|
|
Power Consumption
|
＜15W
|
|
Fuse
|
1A, T class, 250V
|
|
Dimension (W x H x D)
|
117 x 192 x 288 mm
|
|
Device Weight
|
About 1.8 kg
|
