Product Details
| Model | CP-07+ |
|---|
| Test Range |
400mA - 4A |
| Resolution |
0.1mA |
| Bandwidth |
DC 1MHz (±3dB） |
| Jaw Size |
5mm (max) |
| Auto Zero at Power-on |
√ |
| Power Supply |
9V 6F22 Battery |
| Operating Temperature |
0℃ to 50℃ |
| Operating Humidity |
15% to 70% RH |
| DC Current |
Range |
DCA 400mA |
DCA 4A |
| Accuracy |
±1.5%rdg ± 5-digit |
| Sensitivity |
1mV/1mA |
1mV/10mA |
| AC Current |
Range |
ACA 400mA |
ACA 4A |
| Accuracy |
±2.0%rdg ± 5-digit |
| Sensitivity |
1mV/1mA |
1mV/10mA |
| Dimension (W x H x D) |
215 x 36 x 58mm |
| Device Weight |
200g |
Specifications
Specifications

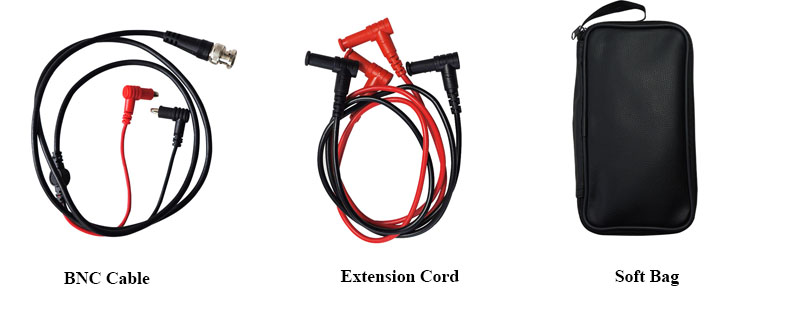

The accessories subject to final delivery.
