CP024 AC/DC Current Probe

Производитель: ♦ OWON Fujian Lilliput Optoelectronics Technology Co., Ltd

Наличие уточняйте

+ 4A to 400A test range
+ Error by earth magnetic: ± 30mA max
+ Remanence (士100A/10A):± 30mA max
+ Bandwidth: DC 200KHz (±3dB)
+ Jaw size: 23mm (Max)
+ Auto Zero at power on
+ Low battery indication

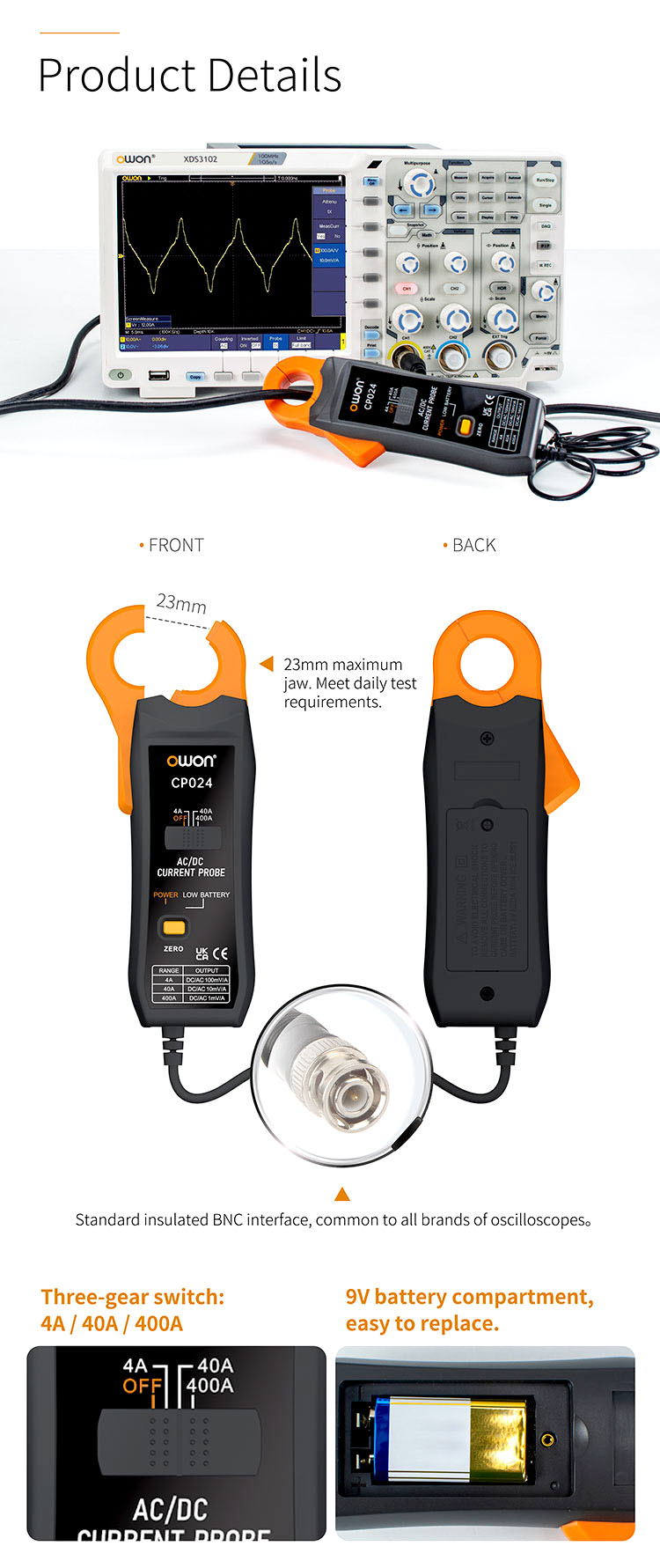

Product Details

Specifications

DC Current

Range	Sensitivity	Accuracy
DC 4A	1 mV/10 mA	±(1.5%rdg±5d)
DC 40A	1 mV/ 0.1A	±(1.5%rdg±5d)
DC 300A	1 mV/ 1A	±(1.5%rdg±5d)
DC 300 - 400A	1 mV/ 1A	±(3.5%rdg±5d)

AC Current

Range	Sensitivity	Accuracy
AC 4A	1 mV/ 10mA	±(2.0%rdg±5d)
AC 40A	1 mV/ 0.1A	±(2.0%rdg±5d)
AC 300A	1 mV/ 1A	±(2.0%rdg±5d)
AC 300A - 400A	1 mV/ 1A	±(3.5%rdg±5d)

General Specifications

Power supply	9V (6LR61) Battery (optional)
Dimension(WHD)	180 x 68 x 32 (mm)
Device Weight	About 250 g
Operating Temperature	0℃ to 50℃，≤70%RH

CP024 AC/DC Current Probe

Product Details

Specifications

Support

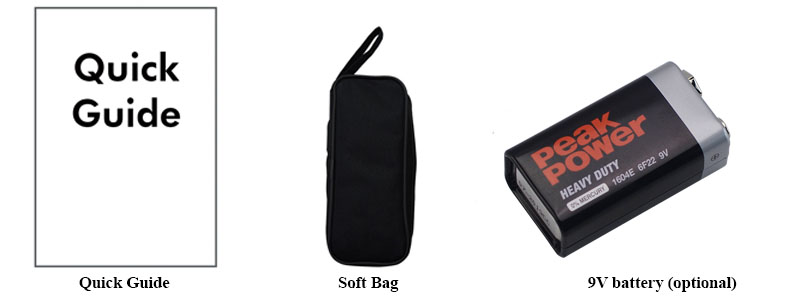

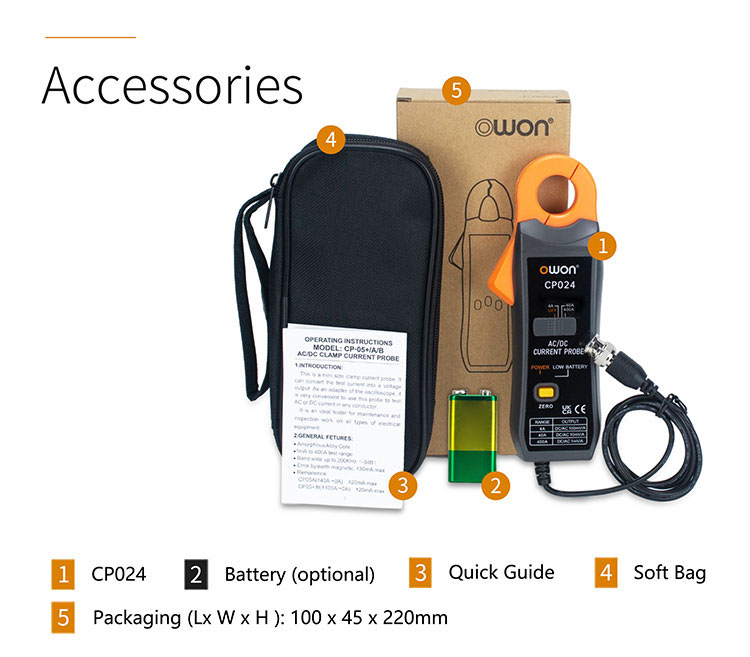

Accessories
